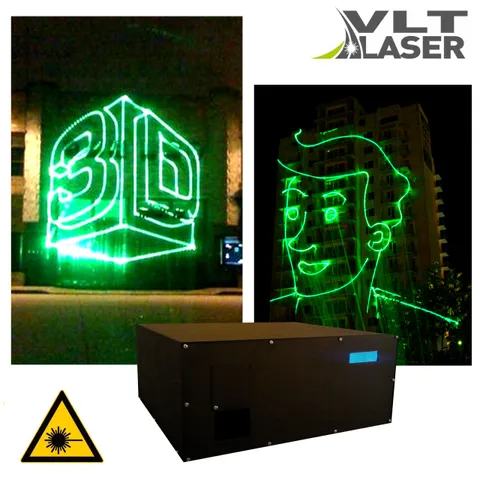

VLT Green 5 000 Pro Termo — all-weather advertising laser projector
VLT Green 5 000 Pro Termo all-weather advertising projector with 5,000 mW output, automation, internet control and an operating range of −45 to +45°C.
Key features:
All-weather construction with an operating temperature range of −45 to +45°C.- 5,000 mW monochrome green output for bright laser projection.
- Programmable unattended operation with automated internal systems.
- Internet and Wi-Fi control with graphics streaming and remote access.
- 2D/3D graphics software, show library and 3D Max converter included.
- 1.5-year warranty with up to five years of service support, documentation and assistance.
- Russian documentation referring to GOST 31581-2012, SanPiN 5804-91 and Federal Antimonopoly Service advertising approvals.
Price:
299 000 RUB
Description
VLT Green 5 000 Pro Termo is a tenth-generation automated, multipurpose, all-weather advertising laser projector. Supplied as a turnkey package with the equipment needed to get started, it uses technologies developed for brightness, reliability and performance. Learn more here: our laser projector technology.
Technical specifications
Parameter
Value
Manufacturer
VLT Laser — Advanced Laser Technologies
Country of manufacture
Russia
Equipment type
Tenth-generation all-weather laser projector
Multipurpose applications
Outdoor laser advertising on buildings and other suitable structures, large-scale laser shows and related applications.
Projection area at night with moderate ambient lighting
0,1–2000+ m²
Color capability
Monochrome green
Maximum output
5,000 mW; power adjustment available as an option.
Green laser source, 532 nm
5,000 mW output; divergence 0.95 mrad; aperture 5 × 5 mm; stated source life 10,000 hours.
Additional source information
Analog control, vibration resistance and multi-element beam correction optics
Source protection
Startup test and intelligent temperature protection/interlock system with an LCD status display
Scanning system
Galvanometer scanners
Operating speed
Up to 60 kpps at 5° and 40 kpps at 30°
Projection angle
0–70° on each axis (X and Y), with electronic control and geometry correction.
Frame rate at 40 kpps and 1,200 points
33.3 frames per second, designed to avoid visible image flicker
Laser graphics capabilities
Vector 2D/3D graphics, cartoons, text, dynamic animation and static images
All-weather construction
Temperature-controlled operation within the specified ambient range.
Housing with integrated thermal enclosure
Steel housing with thermal insulation and heat shielding
Integrated temperature stabilization with independent power supply
Heating and active/passive cooling controlled by an integrated microcomputer with LCD
Automation
Scheduled automatic start/stop and automatic graphics playback from rewritable standalone memory
Projector control — laser controller with LCD included
LAN/internet, DMX, SD and ILDA; laser graphics streaming over the network, remote access to rewritable memory and operation without a PC.
Included software — for Windows XP and Windows 7
Moncha Net-based software for preparing laser advertising and shows, additional software and a laser show library. A converter for 3D Max Studio is available on request.
Automation
Autonomous operation without a computer or operator when required.
Power supply
220 V, 50 Hz; maximum consumption 400 W; compatible with suitable vehicle power inverters.
Documented warranty
1.5-year warranty plus five years of service support, warranty certificate and technical documentation.
Additional services
Equipment familiarization, training and advice on Russian laser advertising requirements.
