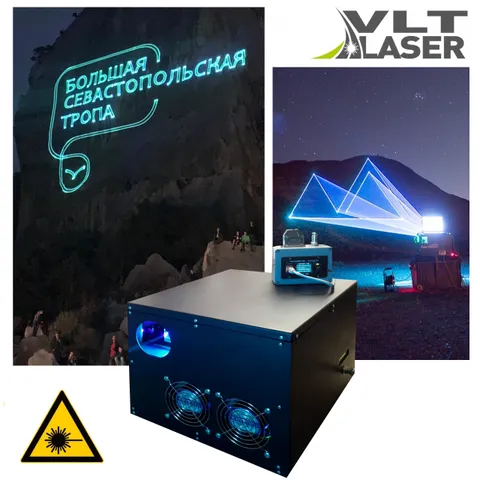

VLT GB Ellit 35 000 Pro Show — laser show projector for large venues
VLT GB Ellit 35 000 Pro Show high-output turquoise laser show projector with Wi-Fi control and 3D graphics.
Key features:
35,000 mW turquoise output for bright laser shows.- Wireless Wi-Fi control and synchronization of multiple projectors.
- 3D graphics and animation, with scanning speed up to 60 kpps.
- Standalone operation with internal memory and SD card support.
- Russian certification documentation for public-event applications.
- 1.5-year warranty and five years of service support, with training.
- 220 V supply, up to 400 W consumption; compatible with suitable vehicle power inverters.
Price:
750 000 RUB
Description
VLT GB Ellit 35 000 Pro Show is a tenth-generation projector for a wide range of laser shows. Supplied as a turnkey package with the equipment needed to get started, it uses technologies developed for brightness, reliability and performance. Learn more here: our laser projector technology.
Technical specifications
Parameter
Value
Manufacturer
VLT Laser — Advanced Laser Technologies
Country of manufacture
Russia
Product name
VLT GB Ellit 35 000 Pro Show
Purpose
Laser shows including animation, beam and aerial effects, laser graphics projection and related applications.
Working area at night with moderate ambient lighting, in RGB color mode
0.1–4,000+ m² / m³
Working area at night with moderate ambient lighting, in monochrome white mode
0.1–4,000+ m² / m³
Color capability
Monochrome turquoise
Maximum output
35,000 mW, with digital power adjustment
Blue laser source, 450 nm
25,000 mW output; divergence 0.9 mrad; aperture 5 × 5 mm; stated source life 10,000 hours.
Green laser source, 532 nm
10,000 mW output; divergence 0.9 mrad; aperture 5 × 5 mm; stated source life 10,000 hours.
Additional source information
Analog color control, vibration resistance, multi-element optics, beam correction and alignment adjustment
Source stabilization
Independent source protection with startup test, intelligent interlocks and LCD
Scanning system
Galvanometer scanners
Operating speed
Up to 60 kpps at 5° and 40 kpps at 30°
Projection angle
0–70° on each axis (X and Y), with electronic control and geometry correction.
Frame rate at 40 kpps and 1,200 points
33.3 frames per second, designed to avoid visible image flicker
Laser graphics capabilities
Vector 2D/3D graphics, cartoons, beam shows, text, dynamic animation and static images
Thermal monitoring
Controlled active and passive cooling; temperature protection with LCD and laser source interlock
Housing
Powder-coated steel
Standalone operation
Operation without a computer using internal rewritable memory when required.
Projector control — laser controller with LCD included
LAN/Wi-Fi, DMX, SD and ILDA input/output, with controlled live show streaming
Synchronization
Multiple-unit synchronization, including synchronized start from a single controller.
Included software — for Windows XP and Windows 7
Moncha Net-based laser show creation software, additional software and a ready-made show library. A 3D Max Studio converter is available on request.
Power supply
220 V, 50 Hz; maximum consumption 400 W; compatible with suitable vehicle power inverters.
Documented warranty
1.5-year warranty plus five years of service support, warranty certificate and technical documentation
Additional services
Equipment familiarization, training and advice on producing shows.
