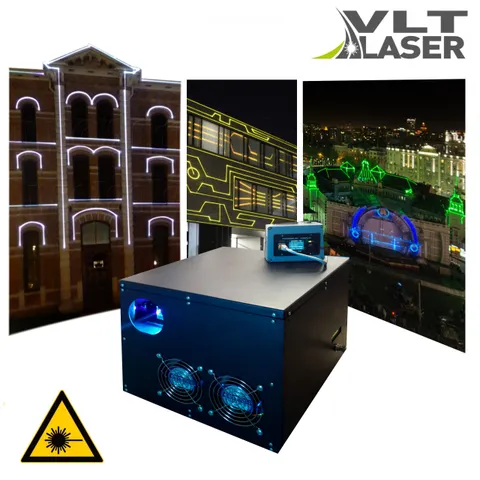

VLT RGB 17 000 Pro Mapping — vector laser mapping projector
All-weather vector laser mapping projector with 17,000 mW output, color graphics and system automation.
Key features:
17,000 mW total laser output with digital adjustment and independent temperature stabilization- All-weather construction with temperature stabilization within the specified operating range
- Professional galvanometer scanning up to 60 kpps and a 70° projection angle
- Internet and Wi-Fi control with streaming and standalone operation
- Pangolin FB-4 software and laser show library included
- Automation with scheduler, remote access and programmable operation
- Russian certification documentation referring to GOST 31581-2012 and SanPiN 5804-91 for public-event applications
Price:
610 000 RUB
Description
VLT RGB 17 000 Pro Mapping is an automated all-weather laser projector for 3D projection mapping. Our laser equipment displays bright, colorful imagery on a range of surfaces. It transforms ordinary structures through a new approach to architectural laser illumination and laser shows.
Supplied as a turnkey package with everything needed to get started. The projectoruses technologies developed for brightness, reliability and performance. Learn more here: our laser projector technology.
Technical specifications
Parameter
Value
Manufacturer
VLT Laser — Advanced Laser Technologies
Country of manufacture
Russia
Product name
VLT RGB 17 000 Pro Mapping
Equipment type
All-weather laser mapping projector
Purpose
Vector laser mapping on suitable surfaces
Working area
0.1–1,000+ m²
Color capability
Full color (RGB), 256 colors
Maximum output
17,000 mW, with digital power adjustment
Red laser source
5,000 mW output; divergence 0.95 mrad; aperture 5 × 5 mm; stated source life 10,000 hours
Blue laser source
8,000 mW output; divergence 0.95 mrad; aperture 4 × 5 mm; stated source life 10,000 hours
Green laser source
4,000 mW output; divergence 0.9 mrad; aperture 4 mm; stated source life 10,000 hours
Scanning system
Galvanometer scanners
Operating speed
Up to 60 kpps at 5° and 40 kpps at 30°
Projection angle
0–70° on each axis (X and Y), with electronic control and geometry correction
Frame rate
33.3 frames per second, designed to avoid visible image flicker
Power supply
220 V, 50 Hz; maximum consumption 400 W; compatible with suitable vehicle power inverters
Warranty
1.5-year warranty plus five years of service support, warranty certificate and technical documentation
