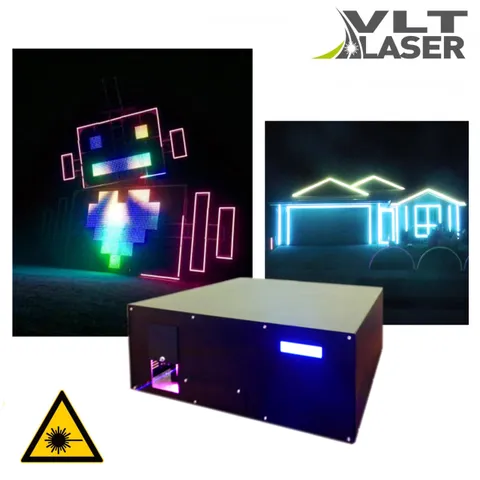

VLT RGB 6 000 Pro Mapping — vector laser mapping projector
Turnkey all-weather laser projector for 3D mapping, with 6,000 mW output, color graphics covering up to 200 m², automation and Pangolin software.
Key features:
6,000 mW total output with digital adjustment for bright mapping displays.- All-weather construction with temperature stabilization.
- System automation: scheduler, Wi-Fi/LAN control and autonomous operation.
- Pangolin FB-4 graphics software, show library and training included.
- Russian certification documentation referring to GOST 31581-2012 for public-event applications.
- Color graphics over an area up to 200 m² and scanning speed up to 60 kpps.
Price:
360 000 RUB
Description
VLT RGB 6 000 Pro Mapping is an automated all-weather laser projector for 3D projection mapping. It displays bright, colorful graphics on a range of surfaces, transforming architectural features into laser illumination and show displays.
Supplied as a turnkey package with the equipment needed to get started. The projector uses technologies developed for brightness, reliability and performance. Learn more here: our laser projector technology.
Technical specifications
Parameter
Value
Manufacturer
VLT Laser — Advanced Laser Technologies
Country of manufacture
Russia
Product name
VLT RGB 6 000 Pro Mapping
Equipment type
All-weather laser mapping projector
Purpose
Vector laser mapping on suitable surfaces
Working area at night with moderate ambient lighting
0.1–200 m²
Color capability
Full color (RGB), 256 colors
Maximum output
6,000 mW, with digital power adjustment
Red, 635 nm wavelength; independent temperature stabilization
2,200 mW output; divergence 0.95 mrad; aperture 5 × 5 mm; stated source life 10,000 hours.
Blue, 450 nm wavelength; independent temperature stabilization
2,600 mW output; divergence 0.95 mrad; aperture 4 × 5 mm; stated source life 10,000 hours.
Green, 532 nm wavelength; independent temperature stabilization
1,200 mW output; divergence 0.9 mrad; aperture 4 mm; stated source life 10,000 hours.
Additional source information
Analog color control, vibration resistance, multi-element optics, beam correction and alignment adjustment
Source protection
Startup test and intelligent temperature protection/interlock system with an LCD status display
Scanning system
Galvanometer scanners
Operating speed
Up to 60 kpps at 5° and 40 kpps at 30°
Projection angle
0–70° on each axis (X and Y), with electronic control and geometry correction.
Frame rate at 40 kpps and 1,200 points
33.3 frames per second, designed to avoid visible image flicker.
Laser graphics capabilities
Vector 2D/3D graphics, cartoons, text, dynamic animation and static images
All-weather construction
Temperature-controlled operation within the specified ambient range.
Housing with integrated thermal enclosure
Steel housing with thermal insulation and heat shielding
Integrated temperature stabilization with independent power supply
Heating and active/passive cooling controlled by an integrated microcomputer with LCD
Automation
Scheduled automatic start/stop and automatic graphics playback from rewritable standalone memory
Projector control — laser controller with LCD included
LAN/internet, SD and ILDA; laser graphics streaming over the network, remote access to rewritable memory and operation without a PC.
Included software
Pangolin FB-4-based laser graphics creation software, additional software and laser show library.
Automation
Autonomous operation without a computer or operator when required.
Power supply
220 V, 50 Hz; maximum consumption 400 W; compatible with suitable vehicle power inverters.
Documented warranty
1.5-year warranty plus five years of service support, warranty certificate and technical documentation.
Additional services
Equipment familiarization, training and legal consultation.
