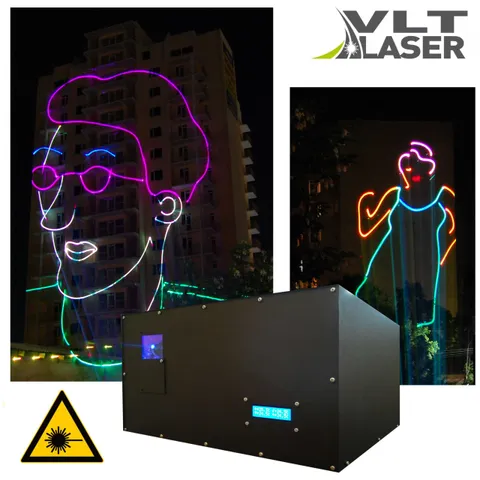

VLT RGB 17 000 Pro Termo — all-weather advertising laser projector
Tenth-generation all-weather advertising laser projector with 17,000 mW total output, color projection and advanced automation.
Key features:
17,000 mW total laser output with digital adjustment.- Operating temperature −45 to +45°C for all-weather use.
- Color output supporting 16 million colors for bright advertising displays.
- Programmable unattended operation.
- Internet and wireless Wi-Fi control for convenient operation and adjustment.
- Complete 2D/3D laser show software package included.
- Russian certification documentation referring to GOST 31581-2012 and SanPiN 5804-91.
- 1.5-year warranty with five years of additional service support.
Price:
591 000 RUB
Description
VLT RGB 17 000 Pro Termo is a tenth-generation automated, multipurpose, all-weather advertising laser projector. Equipment for projection advertising on buildingsis supplied as a turnkey package with the equipment needed to get started. The projector uses laser and engineering technologies developed for brightness, reliability and performance. Learn more here: our laser projector technology.
Technical specifications
Parameter
Value
Manufacturer
VLT Laser — Advanced Laser Technologies
Country of manufacture
Russia
Product name
VLT RGB 17 000 Pro Termo
Equipment type
Tenth-generation all-weather laser projector
Multipurpose applications
Outdoor laser advertising on buildings and other suitable structures, large-scale laser shows and related applications.
Working area at night with moderate ambient lighting, in RGB color mode
0.1–1,000+ m²
Working area at night with moderate ambient lighting, in monochrome white mode
0,1–1500+ m²
Color capability
Full color (RGB), 256 colors
Maximum output
17,000 mW, with digital power adjustment
Red, 635 nm wavelength; independent temperature stabilization
5,000 mW output; divergence 0.95 mrad; aperture 5 × 5 mm; stated source life 10,000 hours.
Blue, 450 nm wavelength; independent temperature stabilization
8,000 mW output; divergence 0.95 mrad; aperture 4 × 5 mm; stated source life 10,000 hours.
Green, 532 nm wavelength; independent temperature stabilization
4,000 mW output; divergence 0.9 mrad; aperture 4 mm; stated source life 10,000 hours.
Additional source information
Analog color control, vibration resistance, multi-element optics, beam correction and alignment adjustment
Source protection
Startup test and intelligent temperature protection/interlock system with an LCD status display
Scanning system
Galvanometer scanners
Operating speed
Up to 60 kpps at 5° and 40 kpps at 30°
Projection angle
0–70° on each axis (X and Y), with electronic control and geometry correction.
Frame rate at 40 kpps and 1,200 points
33.3 frames per second, designed to avoid visible image flicker.
Laser graphics capabilities
Vector 2D/3D graphics, cartoons, text, dynamic animation and static images
All-weather construction
Temperature-controlled operation within the specified ambient range.
Housing with integrated thermal enclosure
Steel housing with thermal insulation and heat shielding
Integrated temperature stabilization with independent power supply
Heating and active/passive cooling controlled by an integrated microcomputer with LCD
Automation
Scheduled automatic start/stop and automatic graphics playback from rewritable standalone memory
Projector control — laser controller with LCD included
LAN/internet, DMX, SD and ILDA; laser graphics streaming over the network, remote access to rewritable memory and operation without a PC.
Included software — for Windows XP and Windows 7
Moncha Net-based software for preparing laser advertising and shows, additional software and a laser show library. A converter for 3D Max Studio is available on request.
Automation
Autonomous operation without a computer or operator when required.
Power supply
220 V, 50 Hz; maximum consumption 400 W; compatible with suitable vehicle power inverters.
Documented warranty
1.5-year warranty plus five years of service support, warranty certificate and technical documentation.
Additional services
Equipment familiarization, training and advice on Russian laser advertising requirements.
