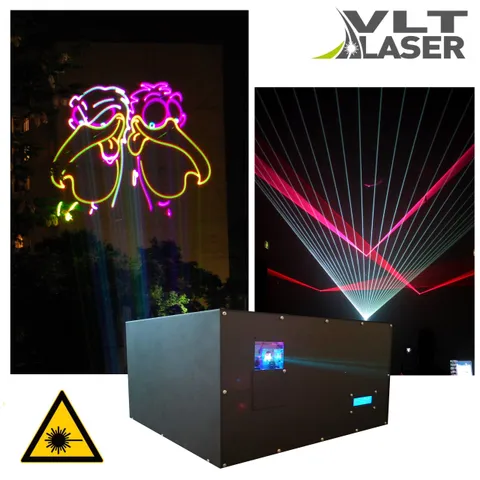

VLT RGB 9 000 Pro Show — laser show projector
VLT RGB 9000 Pro Show professional color laser show projector with advanced control technology.
Key features:
9,000 mW total laser output with digital adjustment.- Full-color RGB projection with 16 million colors for bright, saturated laser shows.
- Wireless Wi-Fi control and multiple-unit synchronization.
- Galvanometer scanning at up to 60 kpps for smooth, high-quality graphics.
- Standalone operation with internal rewritable memory, without a computer connection.
- Russian certification documentation referring to GOST 31581-2012 and SanPiN 5804-91 for public-event applications.
- Specialist 2D/3D laser show software and a ready-made project library included.
Price:
295 000 RUB
Description
VLT RGB 9 000 Pro Show is a projector for producing a wide range of tenth-generation laser shows. Supplied as a turnkey package with the equipment needed to get started. The projectoruses technologies developed for brightness, reliability and performance. Learn more here: our laser projector technology.
Technical specifications
Parameter
Value
Manufacturer
VLT Laser — Advanced Laser Technologies
Country of manufacture
Russia
Product name
VLT RGB 9000 Pro Show
Equipment type
Tenth-generation laser projector
Purpose
Laser shows including animation, beam and aerial effects, laser graphics projection and related applications.
Working area at night with moderate ambient lighting, in RGB color mode
0,1–400 m² / m³
Working area at night with moderate ambient lighting, in monochrome white mode
0,1–800 m² / m³
Color capability
Full color (RGB), 256 colors
Maximum output
9,000 mW, with digital power adjustment
Red, 635 nm wavelength
3,000 mW output; divergence 0.95 mrad; aperture 3 × 4 mm; stated source life 10,000 hours.
Blue, 450 nm wavelength
4,000 mW output; divergence 0.95 mrad; aperture 3 × 4 mm; stated source life 10,000 hours.
Green, 532 nm wavelength
2,000 mW output; divergence 0.9 mrad; aperture 3 mm; stated source life 10,000 hours.
Additional source information
Analog color control, vibration resistance, multi-element optics, beam correction and alignment adjustment
Source stabilization
Independent source protection with startup test, intelligent interlocks and LCD
Scanning system
Galvanometer scanners
Operating speed
Up to 60 kpps at 5° and 40 kpps at 30°
Projection angle
0–70° on each axis (X and Y), with electronic control and geometry correction.
Frame rate at 40 kpps and 1,200 points
33.3 frames per second, designed to avoid visible image flicker
Laser graphics capabilities
Vector 2D/3D graphics, cartoons, beam shows, text, dynamic animation and static images
Thermal monitoring
Controlled active and passive cooling; temperature protection with LCD and laser source interlock
Housing
Powder-coated steel
Standalone operation
Operation without a computer using internal rewritable memory when required.
Projector control — laser controller with LCD included
LAN/Wi-Fi, DMX, SD and ILDA input/output, with controlled live show streaming
Synchronization
Multiple-unit synchronization, including synchronized start from a single controller.
Included software — for Windows XP and Windows 7
Moncha Net-based laser show creation software, additional software and a ready-made show library. A 3D Max Studio converter is available on request.
Power supply
220 V, 50 Hz; maximum consumption 400 W; compatible with suitable vehicle power inverters.
Documented warranty
1.5-year warranty plus five years of service support, warranty certificate and technical documentation
Additional services
Equipment familiarization, training and advice on producing shows.
