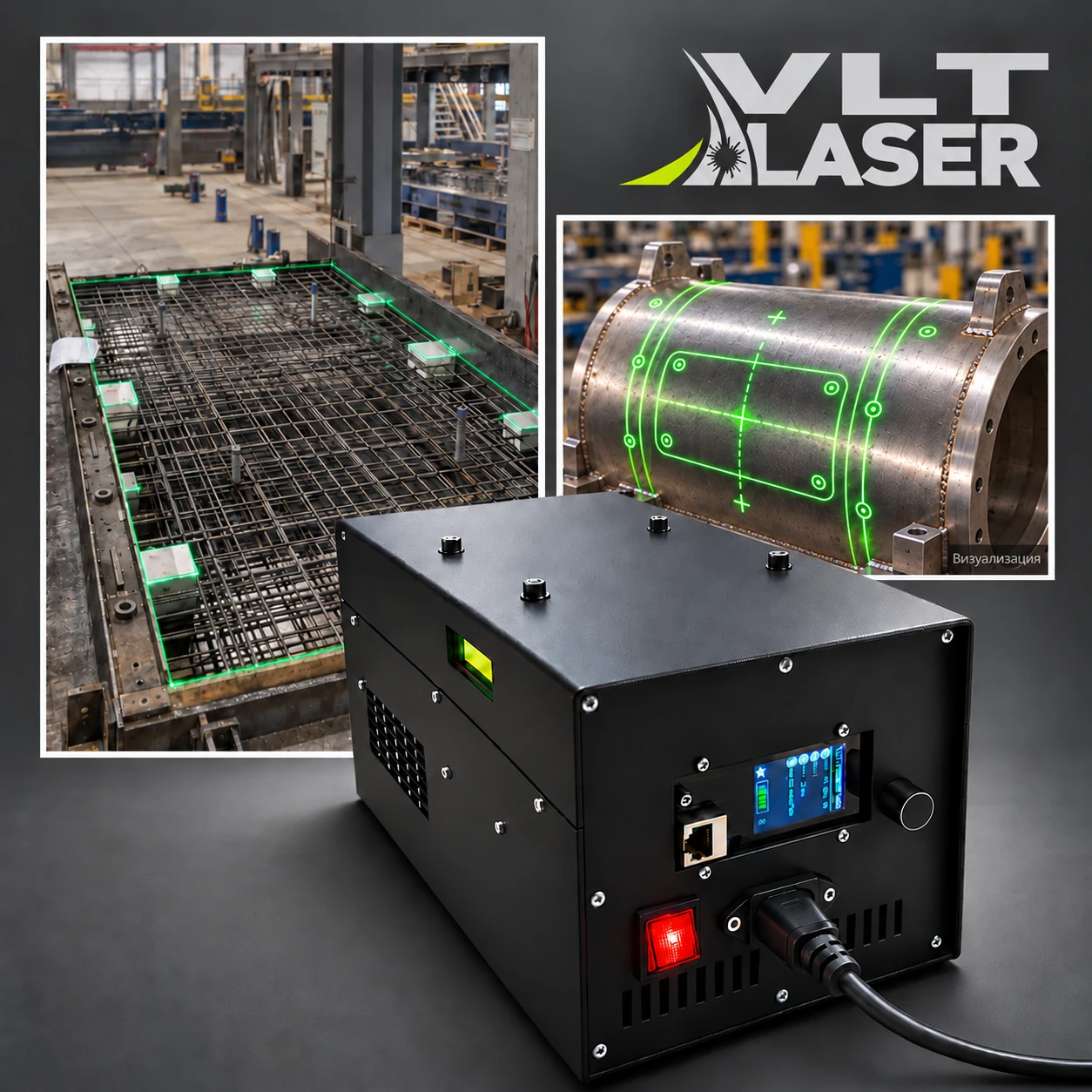

VLT LD Techno Pro — high-brightness industrial laser projection system
Laser projector for accurate projection of drawings onto work surfaces.
Key features:
600 mW output for bright projection under suitable working conditions.- Stated layout accuracy ±0.5 mm per meter, at up to 20 FPS and 90° installation.
- DXF, DWG and SVG drawing support.
- Scan stabilization for a steady image.
- Geometry correction for projection onto non-flat surfaces.
- Full-size projection at 100% scale.
- Convenient wireless Wi-Fi control
- One-year warranty and service support in Russia.
Price:
520 000 RUB
Description
These projectors display DXF, DWG and SVG drawings and diagrams at full scale, creating virtual templates on work surfaces. Accurate positioning can save production time and cost. The systems support 2D and 3D drawing workflows.
Benefits:
- Full-scale drawing projection with X/Y scaling, tilt, offsets, rotation and other adjustments. Multiple systems can be coordinated.
- Save time, material and cost
- Quality checks at the assembly location
- Reduce reliance on physical templates
- Help reduce manual layout errors
- Project contours with fast image updates
- Accurate projection for industrial layout
- Temperature-stabilized sources with adjustable output provide consistent projection. Visibility under strong ambient light depends on the installation and surface.
- Straightforward control and automated display of drawings and templates.
- Software configuration for your workflow
- Laser safety certification documentation is available. Operation and exposure must follow the equipment's documented safety conditions.
Our industrial projection systems use scanners developed to display many elements with high speed and accuracy. The software supports DXF, DWG and SVG workflows, hardware/software image adjustment and automated display sequences. The projector can operate independently or be controlled from a PC over Wi-Fi, simplifying installation in difficult-to-access positions.
Laser-guided layout, positioning and checking are used in:
- composite manufacturing, before cutting or bonding layers
- stretch ceiling membrane production
- mechanical engineering, to position components and assemblies
- steel fabrication, including spans and load-bearing structures
- layout before metal cutting
- woodworking and dimensional checks
- assembly of timber-frame and panel building components
- precast concrete manufacturing, for production layout and quality checks
- prefabricated steel structure manufacturing
- other manufacturing industries
Technical specifications
Parameter
Value
Positioning accuracy
±0.5 mm per meter from projector to surface, at 90° installation and up to 20 FPS
X/Y scan angle
0–60°
Supported drawing complexity
Up to 1,500 points/elements per drawing, for medium-complexity drawings. Layer-by-layer, element-by-element and full drawing projection, with projection overlay checking.
Number of laser sources
2 sources; listed projection colors: red 650 nm, green 520 nm and yellow
Laser source output
Green 200 mW; red 400 mW; yellow 600 mW
Dust protection for laser sources
Yes
Independent laser temperature stabilization
Operating temperature range +5°C to +35°C
Projection colors selected in the software
3 colors: red, green and yellow, individually or together
Control
Wireless Wi-Fi control through a router, LAN, or standalone playback from an SD card
Software
Software for sending drawings, diagrams and templates to the projector. The product description lists DXF, DWG and SVG; confirm formats for your selected software package. Image position, scale, brightness and output can be adjusted, and graphics can be programmed into standalone memory.
Country of manufacture
Russia
Manufacturer
VLT Laser — Advanced Laser Technologies
Warranty
One-year warranty; laser equipment certification for Russia and the Customs Union.
