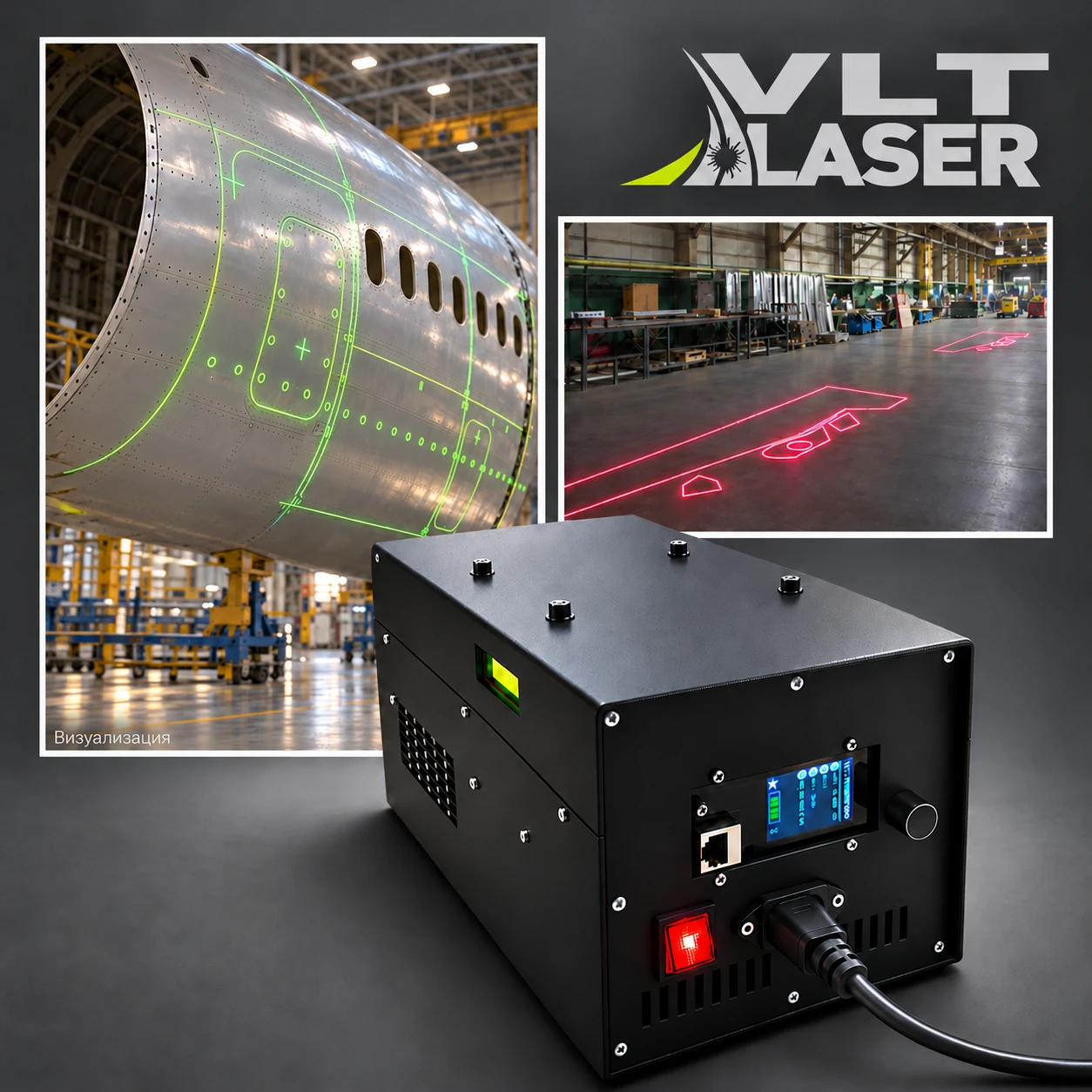

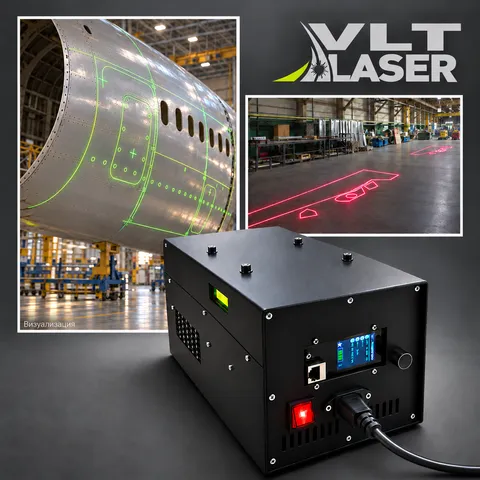

VLT LD Techno Pro Multi-display — precision laser projection system for multi-projector applications
Precision laser projector supporting coordinated projection from multiple units.
Key features:
600 mW output for bright projection under suitable working conditions.- Stated projection accuracy up to ±0.2 mm per meter, at up to 20 FPS and 90° installation.
- Three projection colors: red, green and yellow.
- Hardware and software layout stabilization.
- Wireless Wi-Fi control.
- DXF, DWG and SVG support.
- Software for coordinated control of a projector network.
- One-year warranty and service support in Russia.
Description
VLT LD Techno Pro Multi-display combines multiple projectors into one coordinated drawing display. Group projection extends the working area and supports more complex drawings. Project planned components at full scale, assess their positions and mark assembly references directly on the work surface, reducing manual preparation.
These projectors display DXF, DWG and SVG drawings and diagrams at full scale, creating virtual templates on work surfaces. Accurate positioning can save production time and cost. The systems support 2D and 3D drawing workflows.
Benefits:
- Full-scale drawing projection with X/Y scaling, tilt, offsets, rotation and other adjustments. Multiple systems can be coordinated.
- Save time, material and cost
- Quality checks at the assembly location
- Reduce reliance on physical templates
- Help reduce manual layout errors
- Project contours with fast image updates
- Accurate projection for industrial layout
- Temperature-stabilized sources with adjustable output provide consistent projection. Visibility under strong ambient light depends on the installation and surface.
- Straightforward control and automated display of drawings and templates.
- Software configuration for your workflow
- Laser safety certification documentation is available. Operation and exposure must follow the equipment's documented safety conditions.
Our industrial projection systems use scanners developed to display many elements with high speed and accuracy. The software supports DXF, DWG and SVG workflows, hardware/software image adjustment and automated display sequences. The projector can operate independently or be controlled from a PC over Wi-Fi, simplifying installation in difficult-to-access positions.
Laser-guided layout, positioning and checking are used in:
- composite manufacturing, before cutting or bonding layers
- stretch ceiling membrane production
- mechanical engineering, to position components and assemblies
- steel fabrication, including spans and load-bearing structures
- layout before metal cutting
- woodworking and dimensional checks
- assembly of timber-frame and panel building components
- precast concrete manufacturing, for production layout and quality checks
- prefabricated steel structure manufacturing
- other manufacturing industries
Technical specifications
