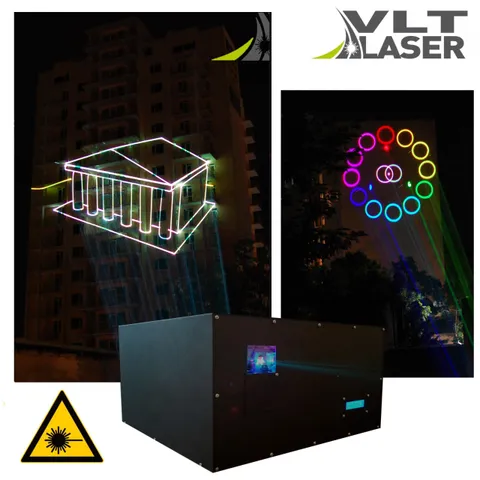

VLT RGB 9 000 Pro Termo — all-weather advertising laser projector
VLT RGB 9000 Pro Termo all-weather advertising projector with 9,000 mW color output, automation and programmable operation.
Key features:
All-weather construction with an operating temperature range of −45 to +45°C.- 9,000 mW total laser output with digital adjustment.
- Automated, programmable unattended operation.
- Internet and Wi-Fi control with streaming.
- 2D/3D graphics software package included.
- 1.5-year warranty and five years of service support.
Price:
398 000 RUB
Description
VLT RGB 9 000 Pro Termo is a tenth-generation automated, multipurpose, all-weather projector for advertising on buildings. Equipment for projection advertising on buildingsis supplied as a turnkey package with the equipment needed to get started. The projector uses laser and engineering technologies developed for brightness, reliability and performance. Learn more here: our laser projector technology.
Technical specifications
Parameter
Value
Manufacturer
VLT Laser — Advanced Laser Technologies
Country of manufacture
Russia
Product name
VLT RGB 9000 Pro Termo
Equipment type
Tenth-generation all-weather laser projector
Multipurpose applications
Outdoor laser advertising on buildings and other suitable structures, large-scale laser shows and related applications.
Working area at night with moderate ambient lighting, in RGB color mode
0,1–450 m²
Working area at night with moderate ambient lighting, in monochrome white mode
0,1–800+ m²
Color capability
Full color (RGB), 256 colors
Maximum output
9,000 mW, with digital power adjustment
Red, 635 nm wavelength; independent temperature stabilization
3,000 mW output; divergence 0.95 mrad; aperture 4 × 5 mm; stated source life 10,000 hours.
Blue, 450 nm wavelength; independent temperature stabilization
4,000 mW output; divergence 0.95 mrad; aperture 3 × 5 mm; stated source life 10,000 hours.
Green, 532 nm wavelength; independent temperature stabilization
2,000 mW output; divergence 0.9 mrad; aperture 3 mm; stated source life 10,000 hours.
Additional source information
Analog color control, vibration resistance, multi-element optics, beam correction and alignment adjustment
Source protection
Startup test and intelligent temperature protection/interlock system with an LCD status display
Scanning system
Galvanometer scanners
Operating speed
Up to 60 kpps at 5° and 40 kpps at 30°
Projection angle
0–70° on each axis (X and Y), with electronic control and geometry correction.
Frame rate at 40 kpps and 1,200 points
33.3 frames per second, designed to avoid visible image flicker.
Laser graphics capabilities
Vector 2D/3D graphics, cartoons, text, dynamic animation and static images
Housing with integrated thermal enclosure
Steel housing with thermal insulation and heat shielding
Integrated temperature stabilization with independent power supply
Heating and active/passive cooling controlled by an integrated microcomputer with LCD
Automation
Scheduled automatic start/stop and automatic graphics playback from rewritable standalone memory
Projector control — laser controller with LCD included
LAN/internet, DMX, SD and ILDA; laser graphics streaming over the network, remote access to rewritable memory and operation without a PC.
Included software — for Windows XP and Windows 7
Moncha Net-based software for preparing laser advertising and shows, additional software and a laser show library. A converter for 3D Max Studio is available on request.
Automation
Autonomous operation without a computer or operator when required.
Power supply
220 V, 50 Hz; maximum consumption 400 W; compatible with suitable vehicle power inverters.
Documented warranty
1.5-year warranty plus five years of service support, warranty certificate and technical documentation.
Additional services
Equipment familiarization, training and advice on Russian laser advertising requirements.
